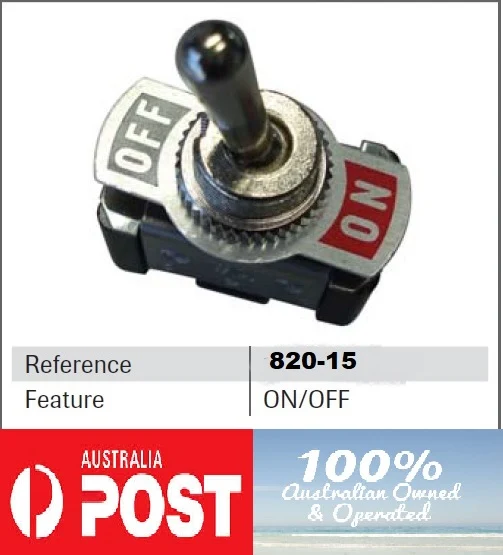

ON / OFF TOGGLE SWITCH.
TWO CONNECTIONS.
BLADE 6.33 mm CONNECTION.
SPECS BELOW.
| Number of connections | 2 |
|---|---|
| Type of the connection | blade 6,3 mm |
| Current (A) | 15 |
| Minimum voltage U1 (V) | 250 |
| Actuator present | YES |
| Type of the actuator | round |
| Length of the actuator L1 (mm) | 16.5 |
| Built-in diameter D1 (mm) | 12 |
| Length thread panelmount L3 (mm) | 12 |
| Type of thread | M12 |
| Pitch (metric) (mm) | 1 |
| Right or left handed thread | right handed thread |
| Total length of the toggle switch L4 (mm) | 29 |
| Total width of the toggle switch W2 (mm) | 16 |
| Total height of the toggle switch H1 (mm) | 59 |
| Sort of switch | single pole |
| Type of the switch | on-none-off |
| Material of the housing | metal plastic |
| Material of the actuator | metal |
| Cap present | NO |
| Symbol present | no |
| Light present | no |
| Lettering: text or digits stated on the toggle switch | ON-OFF |
Quality Part - made in the USA.
P/N 820-15
